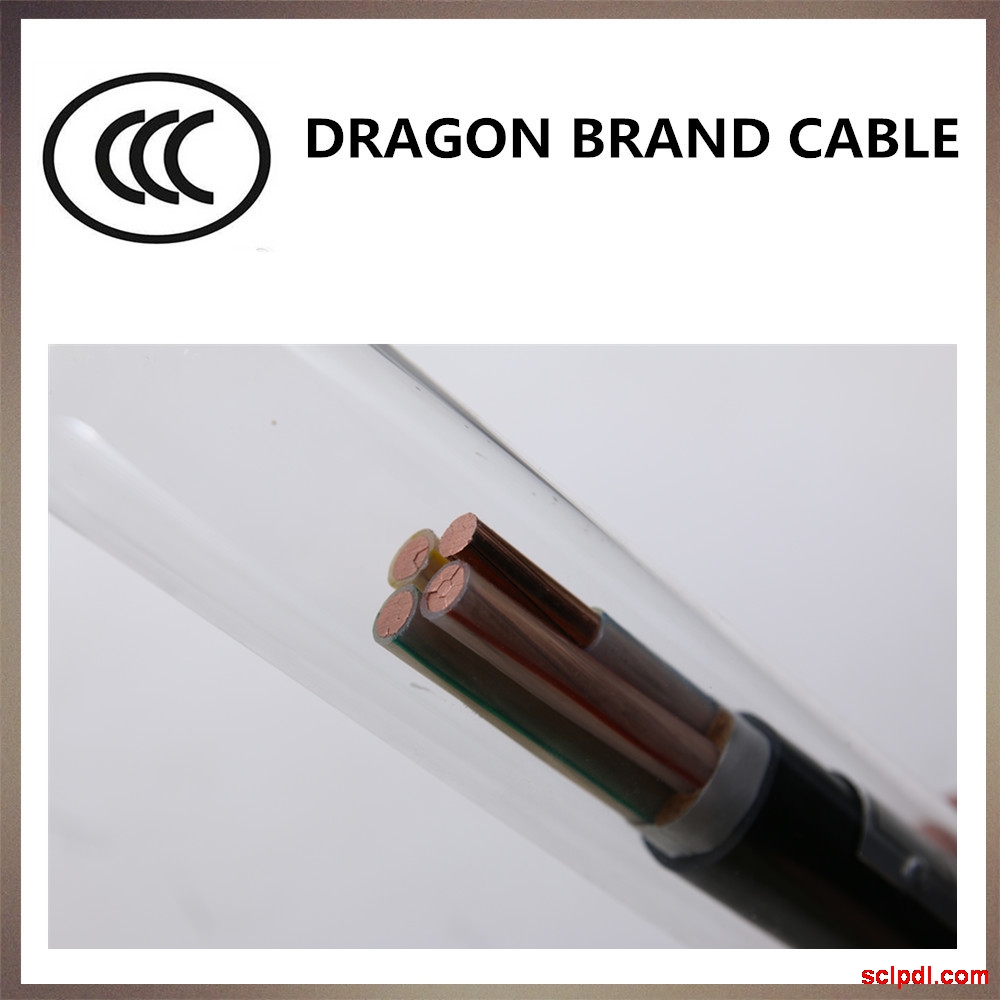

PVC insulation Power Cable 0.6/1 kV (without armour)
|
|
?
|
|
Type ?
|
??NYY, VV, VLV, Cu/PVC/PVC, Al/PVC/PVC
|
|
Voltage??
|
??0.6/1 kV
|
|
Cores??
|
??1C, 2C, 3C, 4C, 5C, 3C+1E,4C+1E, 3C+2E
|
|
Range of Nominal cross section??
|
??1.5 mm2?～ 630 mm2
|
|
Application??
|
??It applies to electrical power transmission and distribution lines
with AC rated?voltage U0/U up to and including 0.6/1 kV. For outdoor
?and indoor installation?in damp and wet locations, laid directly in
?the?ground (when well protect in?ducts, in trenches and in steel
support brackets. )
|
|
Standard??
|
??IEC 60502, BS 7870, GB/T12706
|
|
Constructions??
|
Conductor??
|
Class 1/2 annealed bare copper solid or
strands
|
|
Insulation??
|
??PVC/XLPE
|
|
Sheath??
|
??PVC or XLPE
|
|
Max. Operating Temperature??
|
??70 ℃, can be 90 ℃ and 110 ℃ as per requirement
|
|
Packing??
|
??Wooden drum or as per requirement
|
|
Production Capacity??
|
??30 kilometer / day
|
|
MOQ??
|
??1000 meters for small size, 500 meters for big size.
|
|
Delivery time??
|
??10 ～ 15 working days
|
|
Remark??
|
The cable can be of flame retardance, fire resistance, environment
friendly or?other property
|
